Brand Name : ROSCHEN
Model Number : RS1000
Certification : ISO
Place of Origin : CHINA
MOQ : 1 set
Price : Negotiate
Payment Terms : T/T
Supply Ability : 1000000 set
Delivery Time : 5 - 8 working days
Packaging Details : Poly wooden box
Special features : Waterproof / Weatherproof,wirelessa and intercom,700TVL
Sensor : CCD,CMOS,sony 1/3 inch CCD sensor 0.1 lux,Other,SONY
Type : Digital Camera,Analog Camera,IP Camera,borehole camera,Well deep inspection system
Technology : Pan / Tilt / Zoom,Pinhole,NetWork,Color,Infrared
Style : Dome Camera,Mini Camera,Box Camera,Pipe camera,water well camera
Resolution : High Resolution Waterproof Camera,1024*768,680*480,720TVL,1920*1080
View angle : 135°,130 degree wide angle,170 degree,60 degree
Product name : video borescope,Downhole TV camera,Sewer / Crawler Pipe Inspection Robot Camera System,Schroder P60SJ underwater vertical downhole pipe inspection camera,High Quality Waterproof Imaging System
Warranty : 1 Year,Two Years
Display : LCD Display,12 Inch Touch Display,4.3inch,7inch /12 inch display optional with 32G SD card
Lens : sapphire glass,2.8-12mm,2.8 MM Manual Zoom Lens,3X digital zoom,5Xoptical zoom
Cable length : 150-500m flexible cable,100m Cable (100-2000m 0ptional),30m
Image sensor : 1/4 CMOS,1/4 Sony CCD,1/3 inch Sony CCD Sensor
Camera diameter : 14mm,45mm,63mm
Storage medium : 128G solid state drive,SD card(max 32G)
Monitor size : 10'' monitor,15inch TFT color monitor
Camera type : 180 degree/360 degree,Downhole Video Camera,360 Degree Rotation Camera
Camera housing : stainless steel
Measuring depth : 100-2000m
Wireless Digital Compass Inclinometer Downhole Deviation Tester Downhole Survey Tools
| Basic Info of Downhole Survey Tools | |
| Model NO. | RS-2000 |
| Brand | ROSCHEN |
| Condition | New |
| Dimension | 40mm*1200mm |
| Cotrollor | 2600mA |
| Measuring Time | 0.5s |
| Power | Li-ion Battery, 7.4V Rechargeable |
| Weight | 6kg |
| Water/Dustproof | IP65 |
| Endurance | About 20 Hours |
| Working Temperatrue | -10°c - 70°c |
| Max Pressure | 20MPa |
| Storage | 8GB ROM |
| Measuring Depth | 2000m |
| Accuracy | 2mm |
| Vertical Lines | 1 |
| Horizontal Line | 2 |
| After-sales Service | Online Guidance |
| Warranty | 1 Year |
| Transport Package | Natural Package |
| Specification | CE |
| Trademark | ROSCHEN |
| Origin | China |
| HS Code | 9015800090 |
| Production Capacity | 1000 Sets/Month |
The geotechnical inclinometer is designed and made for inclination measurement and direction control during engineering drilling, exploration drilling and directional drilling. Combines sensor, power supply, data processing system, and other controlling unit together, it can independently determine dip angle and azimuth angle of borehole at multi-points. No cable is needed. No mechanical moving parts. It is reliable and with high performance price ratio.
Technical parameters:
Wireless Digital Compass Inclinometer Downhole Deviation Tester
| 1.Inclination Range | 0° - 80°(Resolution 0.01°) | Accuracy | ±0.1° (0° - 50°) |
| ±0.8° (50° - 80°) | |||
| 2.Azimuth Range | 0° - 360°(Resolution 0.1°) | Accuracy | ±3°(@Inclination>4°) |
| 3.Pressure | 20MPa | ||
| 4.Dimensions | Ø40mm×1200mm | Weight | about 6Kg |
| 5.Temperature | -10°C - 70°C | ||
| 6.Power (Probe) | 7.4V Rechargeable Battery | Endurance | About 20 hours |
| 7.Power (Controller) | 2600 mAh Polymer Battery | ||
| 8.Depth | 2000m | ||
| 9.Storage | 8GB ROM | ||
Main application:
Wireless Digital Compass Inclinometer Downhole Deviation Tester
Measuring the inclination and azimuth of the non-magnetic boreholes for geological survey and geological project.

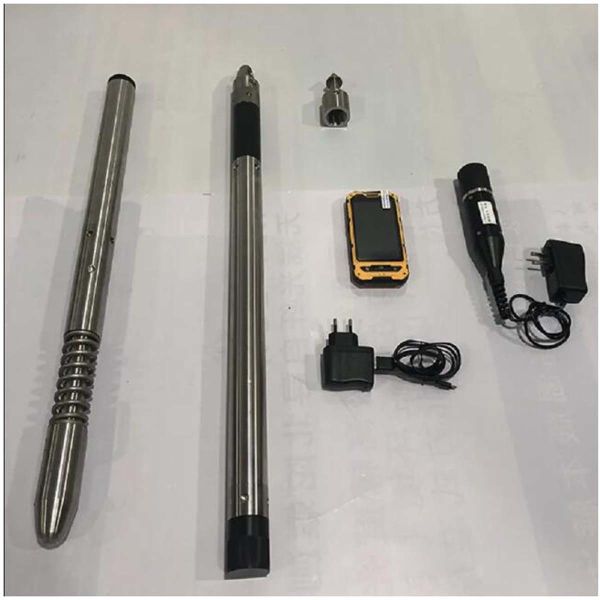

Structure:


|
|

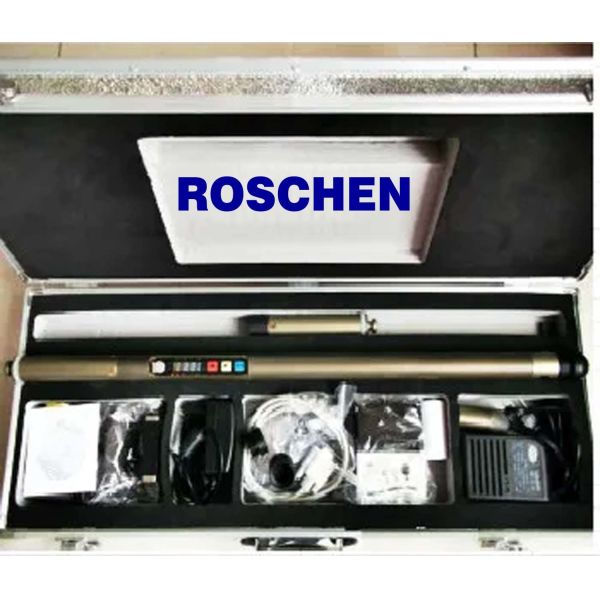

Wireless Digital Compass Inclinometer 40mm x 1200mm 2000m Depth Images |
